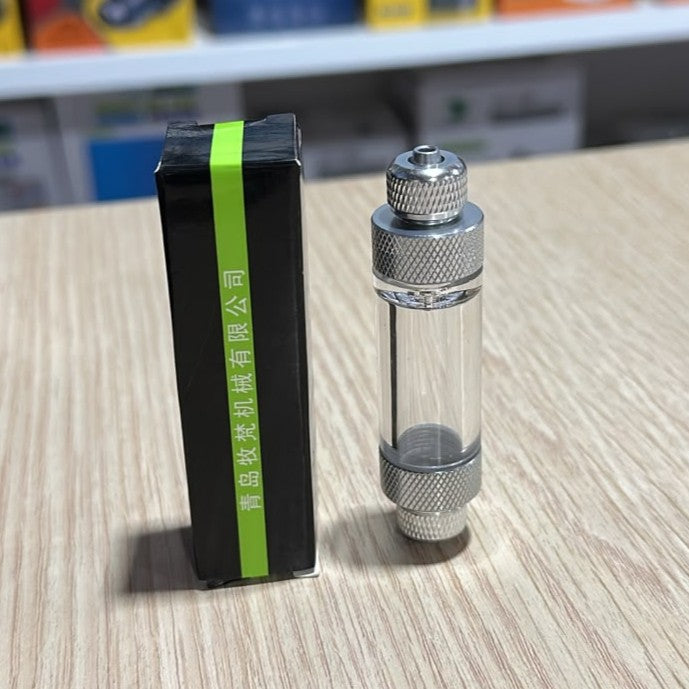

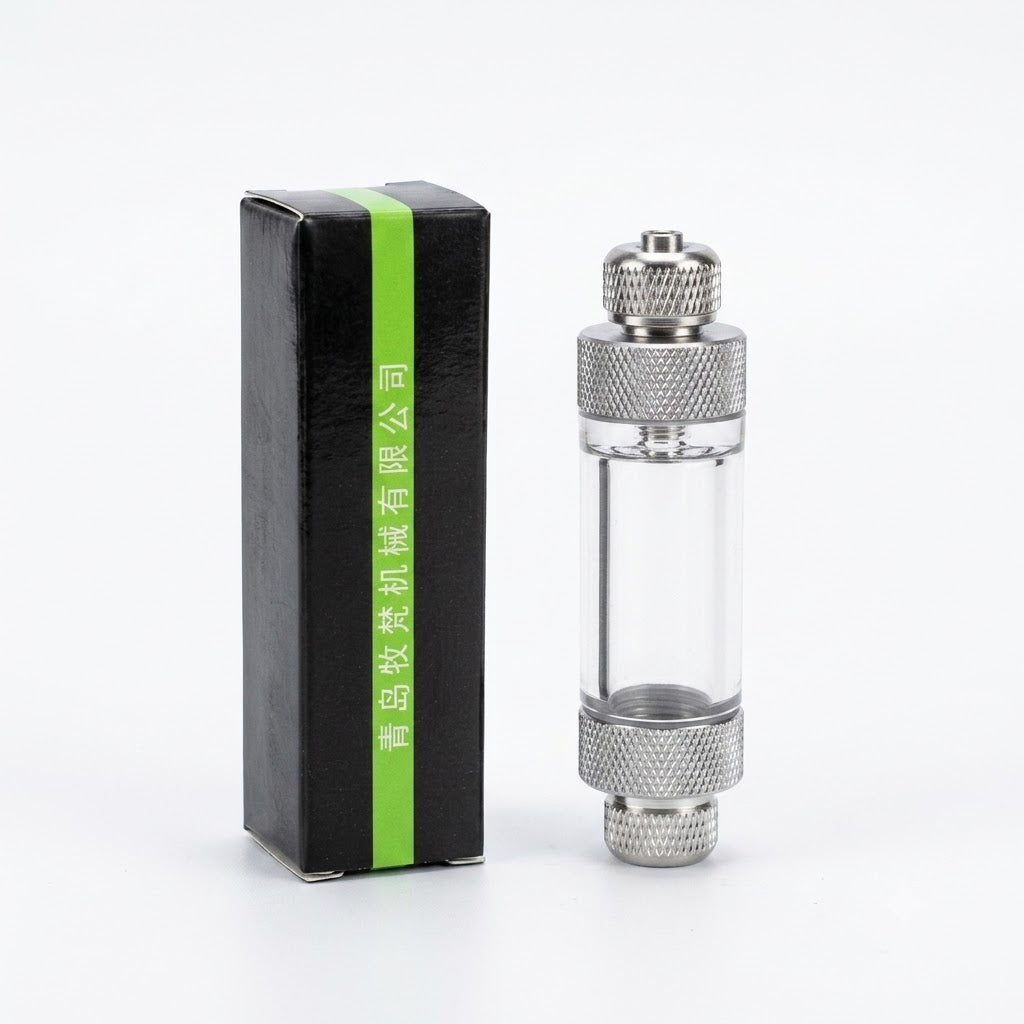

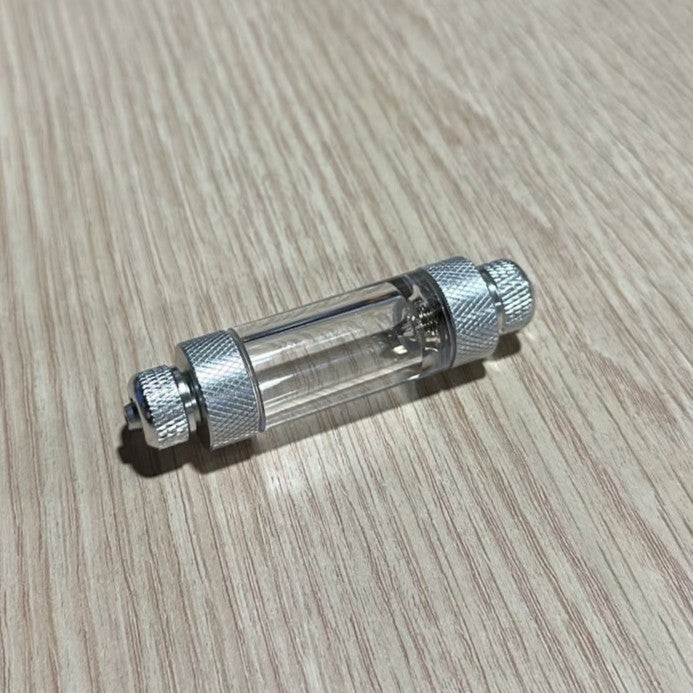

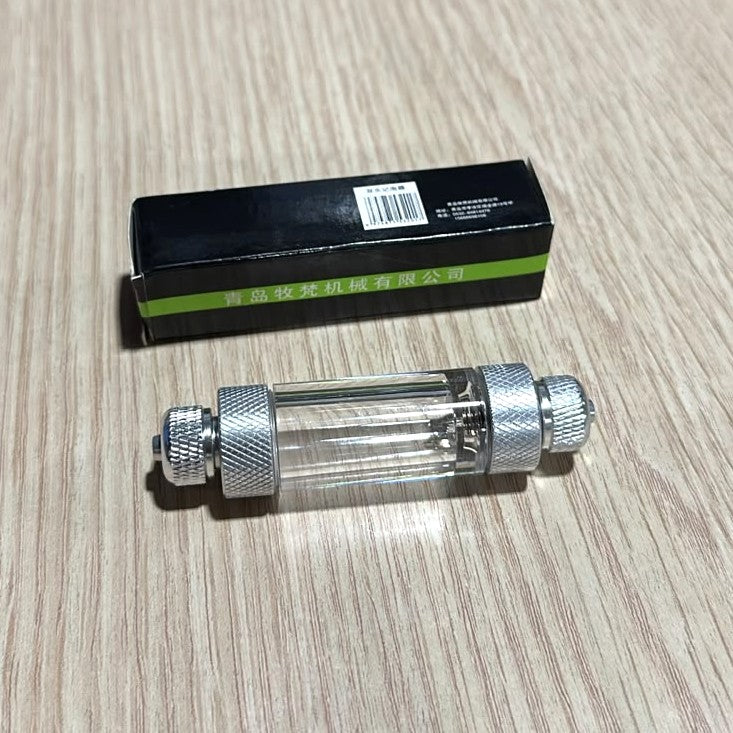

Mufan CO2 Bubble Counter for Planted Aquariums

Take the guesswork out of your aquarium's carbon dioxide dosing with the Mufan CO2 Bubble Counter, available now at www.onyxaqua.com. Injecting CO2 is vital for lush, vibrant aquatic plant growth, but too much can be harmful to your fish and invertebrates. This precision-engineered tool allows you to visually monitor and precisely fine-tune your CO2 injection rate (measured in bubbles per second), ensuring a perfectly balanced and safe ecosystem.

Key Features & Benefits

• Premium Metal Construction: Designed with durable, silver-finished metal end caps featuring textured knurling. This provides a sleek, professional aesthetic and vastly outlasts brittle plastic alternatives.

• Crystal Clear Chamber: The highly transparent central viewing tube allows for effortless, accurate counting of CO2 bubbles as they travel through the water.

• Secure Tubing Locks: Equipped with threaded metal compression nuts on both the inlet and outlet. These firmly lock your CO2 tubing into place, preventing dangerous gas leaks or accidental tube blow-offs under high pressure.

• Effortless Maintenance: The modular design easily unscrews, making it incredibly simple to top off the water chamber or perform routine cleaning.

Product Specifications

Installation Guide

To properly set up your new bubble counter for accurate readings, follow these simple steps:

Quick Setup Instructions:

1. Carefully unscrew the top metal cap of the bubble counter.

2. Fill the clear chamber approximately 3/4 full with clean tap water or specialized bubble counter fluid.

3. Reattach the top cap and tighten it securely to ensure a complete, airtight seal.

4. Remove the compression nuts from both ends and slide them over your cut CO2 tubing.

5. Push the tubing firmly onto the exposed metal nozzles (ensuring gas flows upward from the bottom inlet), then screw the compression nuts back down to lock the tubing in place.
