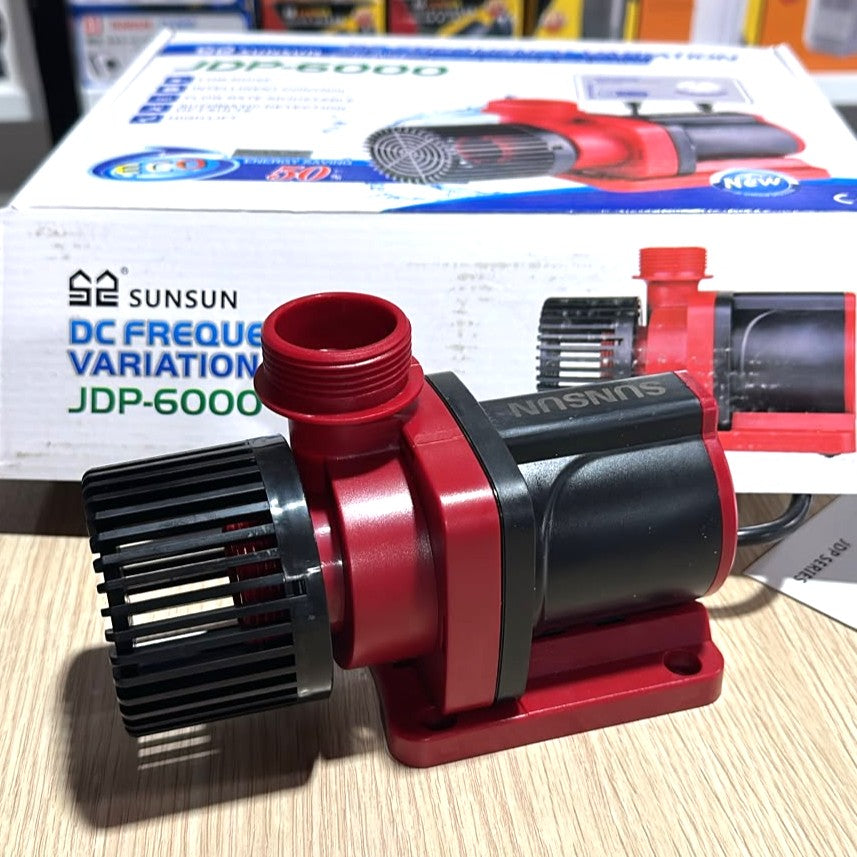

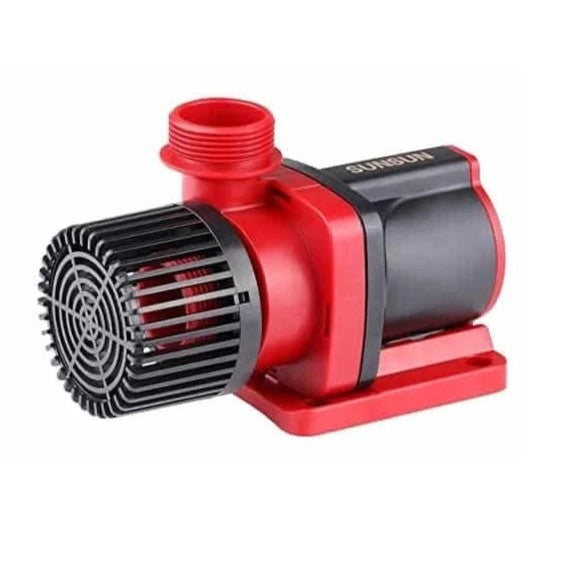

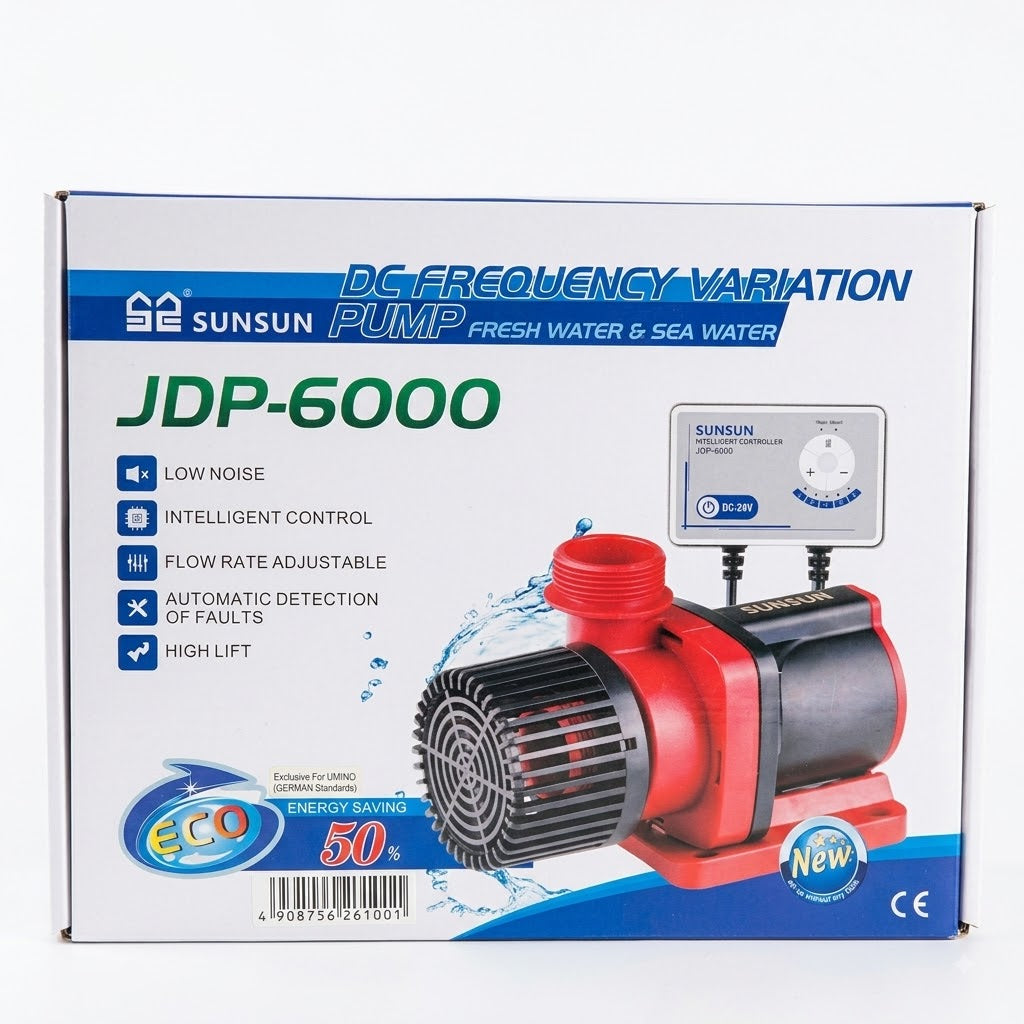

Sunsun JDP-6000 DC Frequency Variation Pump (24V)

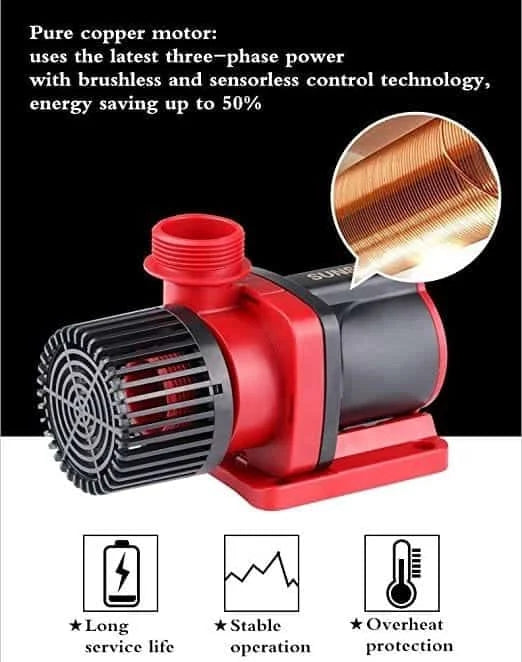

Upgrade your aquarium's filtration and water circulation with the highly efficient Sunsun JDP-6000 DC Frequency Variation Pump, available now at www.onyxaqua.com. Engineered for maximum performance in both freshwater and sea-water aquariums, this 24V return pump utilizes an advanced ECO design to deliver powerful flow while achieving up to 50% energy savings.

Key Features & Benefits

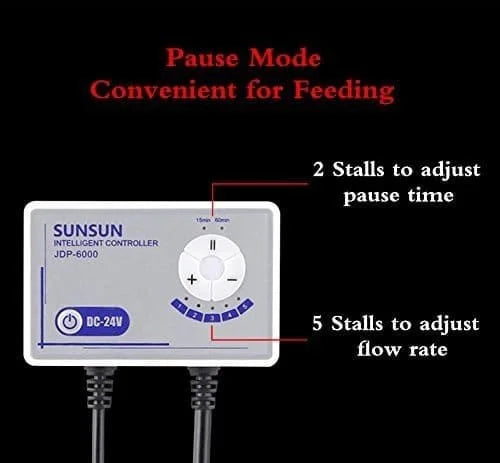

• Intelligent Control: Features a dedicated Sunsun Intelligent Controller (DC-24V) that allows you to effortlessly toggle between 5 distinct flow settings to match your tank's exact needs.

• Adjustable Flow Rate & High Lift: Customize your water turnover from 3000 L/h at Stall 1 up to a massive 6000 L/h at Stall 5, boasting an impressive maximum lift height (H-max) of 5.0 meters.

• Low Noise Operation: Carefully designed to run quietly, preventing unwanted humming or vibration noises from disrupting the tranquil environment of your home or office.

• Automatic Fault Detection: Built-in smart technology automatically detects operational faults, providing an extra layer of safety and protecting the pump motor from damage.

• Fresh & Saltwater Safe: Designed with durable, corrosion-resistant components making it perfectly safe for both marine and freshwater environments.

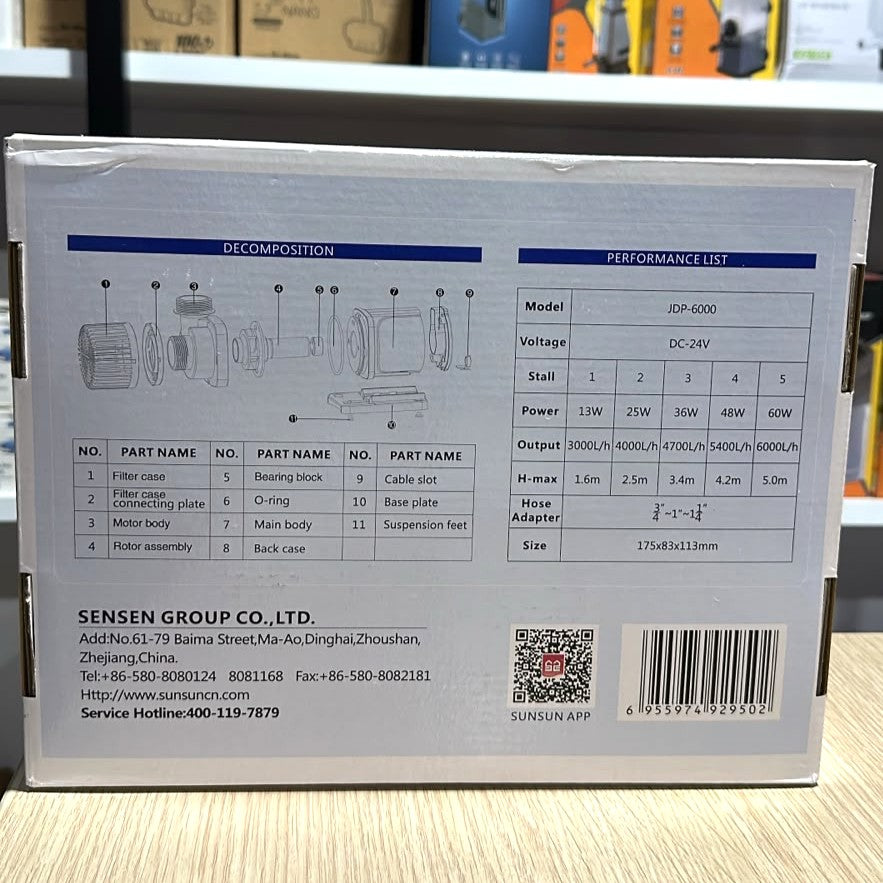

Adjustable Performance List

The JDP-6000 offers precise control with 5 distinct operational stalls to balance power and flow:

General Specifications

• Brand / Manufacturer: Sunsun / Sensen Group Co., Ltd.

• Model: JDP-6000

• Voltage: DC-24V

• Physical Size: 175 x 83 x 113 mm

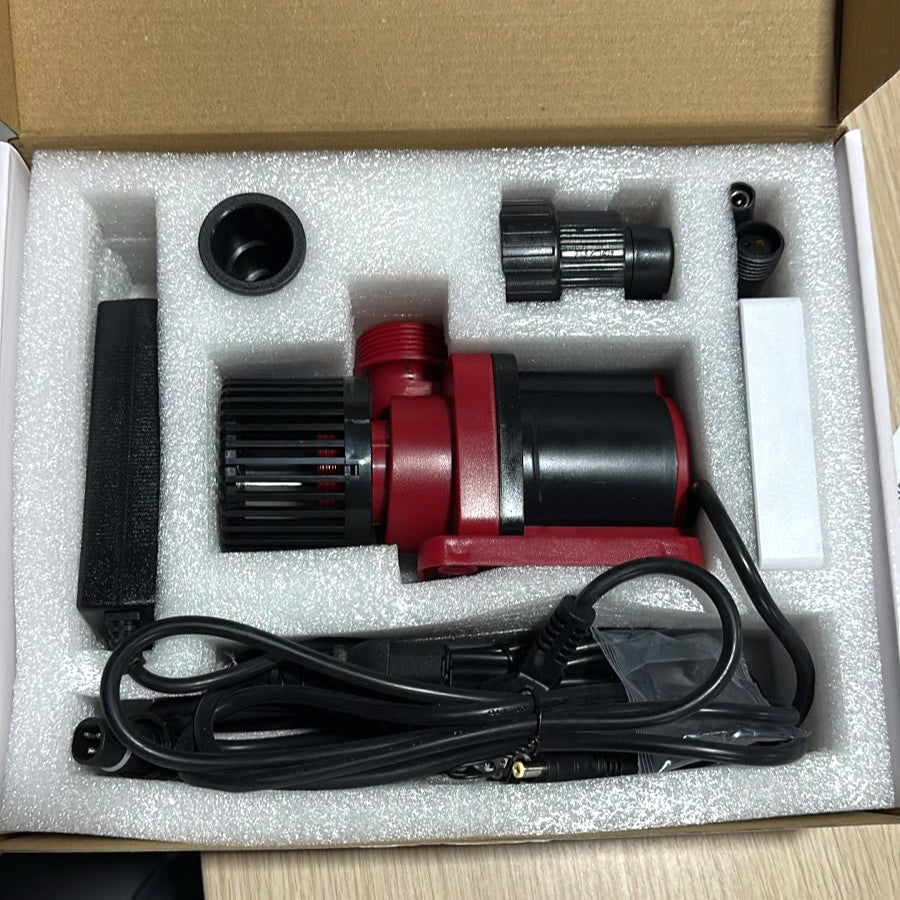

• Included Hose Adapters: 3/4", 1", and 1 1/4"

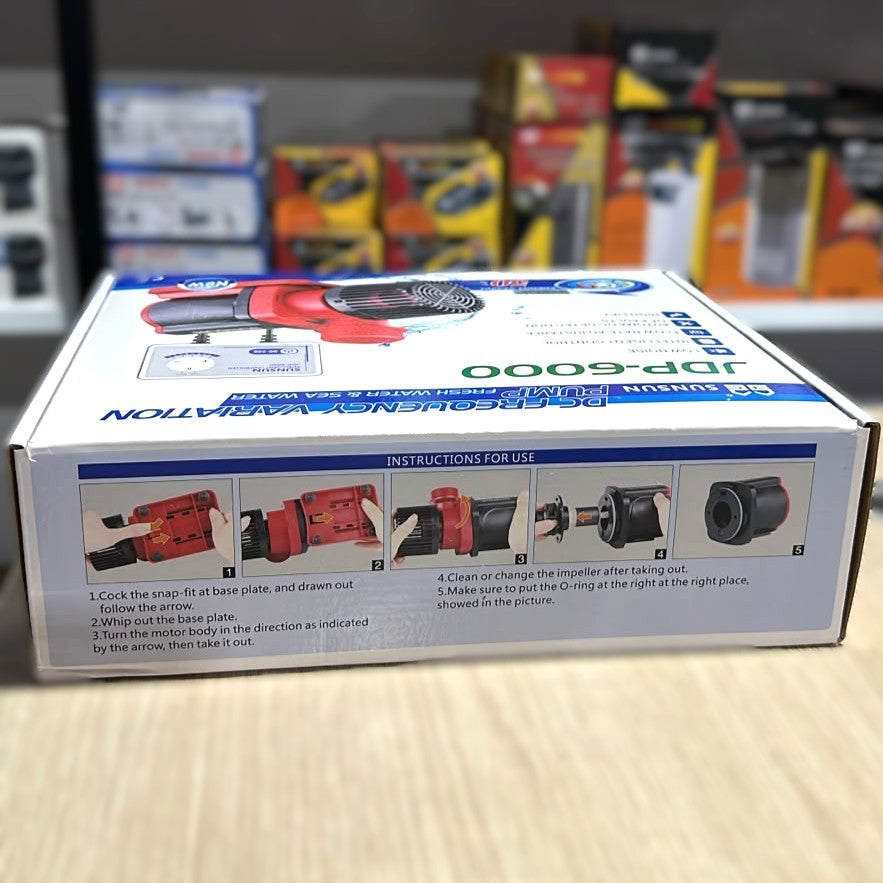

Routine Maintenance & Cleaning Guide

To ensure the longevity of your pump, regular cleaning of the rotor assembly is recommended. Follow these simple steps for disassembly:

1. Cock the snap-fit at the base plate, and draw it out following the direction of the arrow.

2. Whip out the base plate.

3. Turn the motor body in the direction indicated by the arrow, then take it out.

4. Clean or change the impeller after removing it from the main body.

5. When reassembling, make sure to put the O-ring back at the right place to ensure a proper watertight seal.
